ITALKAST GR-V cylinder kit 132 cc Ø 58 mm stroke 51 - side spark plug - for Vespa 50 , 90 , 125 ET3 Primavera
Use Mouse Wheel to Zoom In/Out
ITALKAST GR-V cylinder kit 132 cc Ø 58 mm stroke 51 - side spark plug - for Vespa 50 , 90 , 125 ET3 Primavera
Users feedback
| Price: |
|
|---|---|
| Freight costs: | From € 10,89 VAT included (22%)Details |
| Item code: | 4963 |
| Marca: |  |
| Codice produttore: | 003893 |
| Weight: | 5,000 Kg |
| Quantity: |
Descrizione
ITALKAST GR-V 132cc Thermal Group Ø 58mm And 51mm Stroke Side Spark Plug

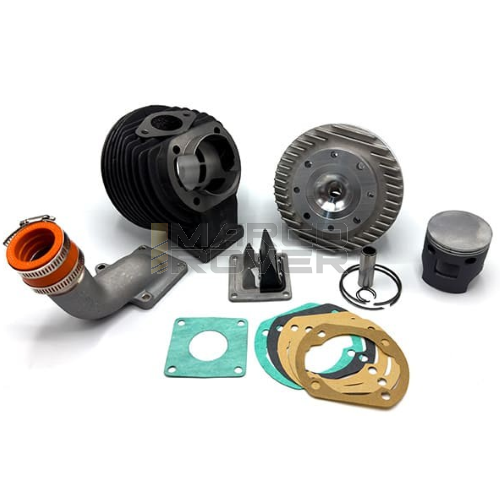

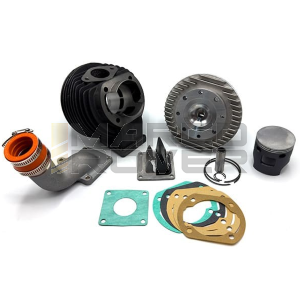

Comes complete with:

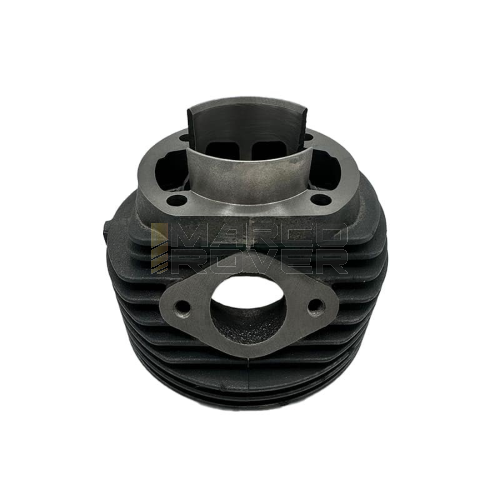

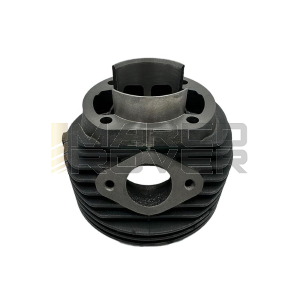

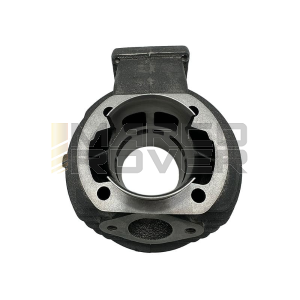

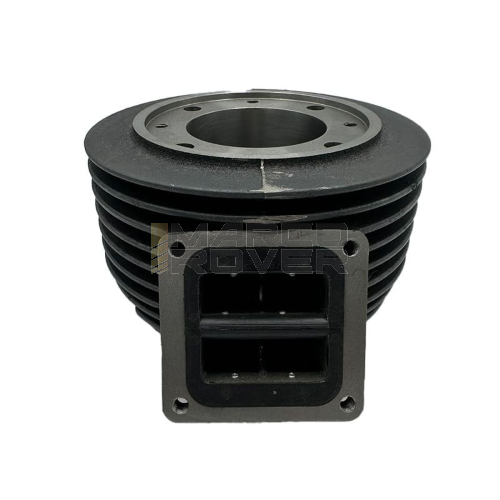

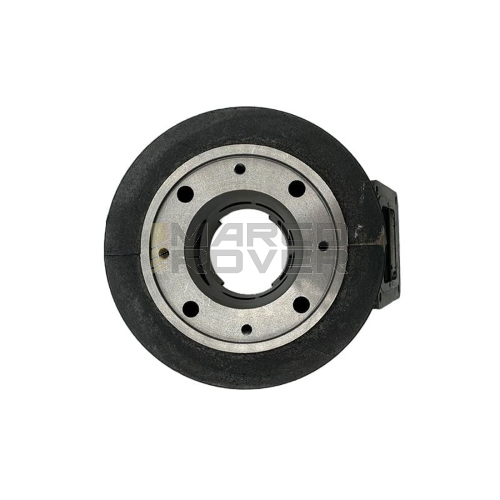

- Cylinder
- Piston
- Head
- Reed valve
- Suction manifold
- Gasket set
- Valve closing plate
TECHNICAL FEATURES
Conversion kit for Vespa small frame engines.
Cast iron cylinder aspirated to cylinder.
Bore: 57.5 mm diameter
Stroke: 51 mm
Displacement 132.37 cc
Phases Primary, secondary and front exhaust ports about 125°
Exhaust port phase about 175°
Aluminum alloy twin piston
Cast aluminum head
Chrome-plated S10 cast iron segments
Steel pin
Recommended squish: 1.1 mm ±0.1mm
Cylinder studs: M7x150
Cylinder stud nut tightening: 14Nm
Head bolts: TCEI M6x30 (12Nm)
Paper cylinder gaskets (0.2Ã-0.3Ã-0.4Ã-0.5mm)
28 / 30mm diameter aluminum carburetor manifold with elastic coupling
Double cusp 8 petal aluminum reed valve with vulcanized coating, carbon reeds
High quality silicone carburetor sleeve complete with stainless clamps
Stainless steel intake to crankcase closing flange
Comes complete with:
- Cylinder
- Piston
- Head
- Reed valve
- Suction manifold
- Gasket set
- Valve closing plate
TECHNICAL FEATURES
Conversion kit for Vespa small frame engines.
Cast iron cylinder aspirated to cylinder.
Bore: 57.5 mm diameter
Stroke: 51 mm
Displacement 132.37 cc
Phases Primary, secondary and front exhaust ports about 125°
Exhaust port phase about 175°
Aluminum alloy twin piston
Cast aluminum head
Chrome-plated S10 cast iron segments
Steel pin
Recommended squish: 1.1 mm ±0.1mm
Cylinder studs: M7x150
Cylinder stud nut tightening: 14Nm
Head bolts: TCEI M6x30 (12Nm)
Paper cylinder gaskets (0.2Ã-0.3Ã-0.4Ã-0.5mm)
28 / 30mm diameter aluminum carburetor manifold with elastic coupling
Double cusp 8 petal aluminum reed valve with vulcanized coating, carbon reeds
High quality silicone carburetor sleeve complete with stainless clamps
Stainless steel intake to crankcase closing flange
