Economical and high-quality solution to restore an existing ignition base plate. In almost 100% of all old ignitions the coils are still completely intact, only the power line wires need to be replaced.

Small "100% handmade in Germany" series made with Ã-LFLEX® HEAT 180 SiF heat-resistant cable up to +180°C.

Appropriately prefabricated for Vespa ignition base plates.

Original cable colors

Includes professionally assembled and insulated plug

High quality silicone cable:

Fine-stranded tinned copper conductor

Temperature resistant: -50°C to +180°C

Resistant to chemicals: oils, alcohols, greases, etc.

Permanently flexible

resistant to aging

Welder required for assembly

All cables have a cross section of 1.0 mm². The main current-carrying cables of the PX Lusso and PK ignitions (blue and black) have a cross section of 1.5mm² as in the original.

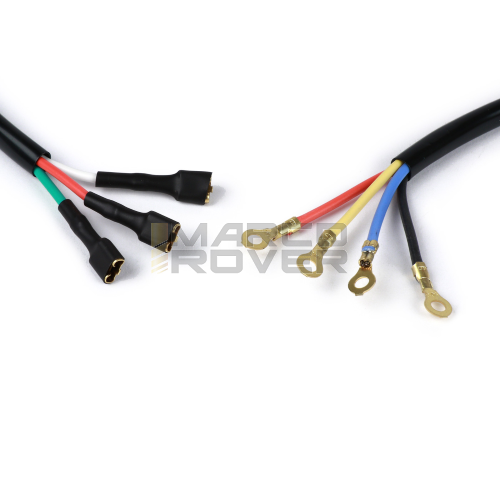

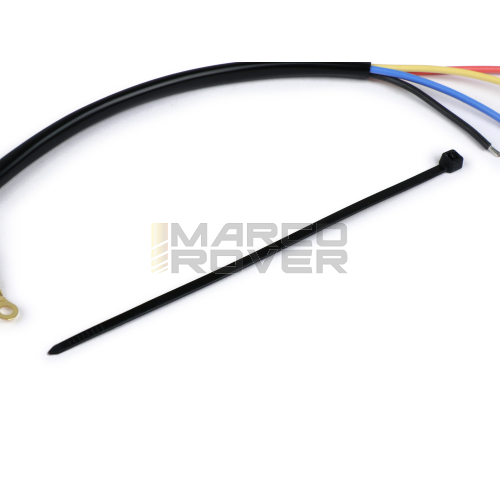

Pre-assembled breakout cables are provided to weld them to an existing alternator in place of the old defective cable.
The cables have professionally crimped cable connectors with heat-shrink tubing insulation and stripped ends for attachment to the ground plane.
Of course, corresponding Bougier tubing is also included for cable protection.
